LK3U Series

LK3U-32-10AD-2DA PLC

Model LK3U-32-10AD-2DA

The LK3U-32-10AD-2DA is a plc in the LK3U Series, featuring 16 DI / 16 DO (32 pt), 10 (Default 0-10V, configurable to 0-20MA or NTC10/50K temperature) analog inputs, and 6 channels 200K, 2 channels 100K (MR type without high-speed output) pulse output.

#PLC #LK3U

RFQ WhatsApp

Known model facts

I/O Points: 16/16
Analog Input: 10
Pulse Output: 6 channels 200K, 2 channels 100K
Communication: RS232 + RS485

Product overview

The LK3U-32-10AD-2DA is a plc model in the LK3U Series, offering 16 DI / 16 DO (32 pt) with 10 (Default 0-10V, configurable to 0-20MA or NTC10/50K temperature) analog inputs and 6 channels 200K, 2 channels 100K (MR type without high-speed output) pulse output capability. LK3U is the flagship compact PLC series with 3 communication ports, 6+2 high-speed pulse outputs, and 4–10 analog inputs.

As part of the LK3U Series, this model shares the series' core platform — DC24V power, IP65 protection, and GX Developer / GX WORKS2 programming environment. Output types include MR (relay), MT (transistor), and MRT (mixed) where indicated.

Compared to other models in the LK3U Series, the LK3U-32-10AD-2DA sits between the LK3U-14-4AD-2DA (lower I/O count) and the LK3U-80-10AD-2DA (higher I/O count). For projects with fewer I/O points, a smaller model may reduce cost; for projects expected to scale, a larger model provides headroom without CPU replacement.

Source highlights

I/O Points: 16/16
Analog Input: 10
Pulse Output: 6 channels 200K, 2 channels 100K
Communication: RS232 + RS485

Technical specifications

I/O: 16/16
Analog Inputs: 10 (Default 0-10V, configurable to 0-20MA or NTC10/50K temperature)
Analog Outputs: 2 (0-10V and 0-20MA compatible output)
Relay Output (MR): 16 channels relay output (Load AC250V/DCOV-DC30V<3A)
Transistor Output (MT): 16 channels transistor output (Load DC24V<0.5A)
Mixed Output (MRT): Y0-Y7 Transistor, Y10-Y17 Relay
HS Pulse Input: 2 (60K), configurable up to 3-6 channels
HS Pulse Output: 6 channels 200K, 2 channels 100K (MR type without high-speed output)
RS232 Port: 1 (Program download, HMI communication)
RS485 Port: MODBUS RUT/RS, Program download, HMI communication
NCAN: Optional 1 NCAN channel (Multi-PLC networking and parallel connection, register sharing)
ECAN: Optional 1 ECAN channel (Dedicated for expansion modules, cannot be selected simultaneously with NCAN)
Weighing: Optional 1-2 Channel Weighing Interface
Power: 24W
Power Loss Tolerance: 3ms
Dimensions: 162*124*56
Storage Temp: -20°C~70°C
Humidity: 10-90%RH (non-condensing)
Vibration: 10-25Hz (X, Y, Z directions, 2g/30 minutes)
Cooling: Natural Cooling
Protection: IP65
Software: GX Developer/GX WORKS2

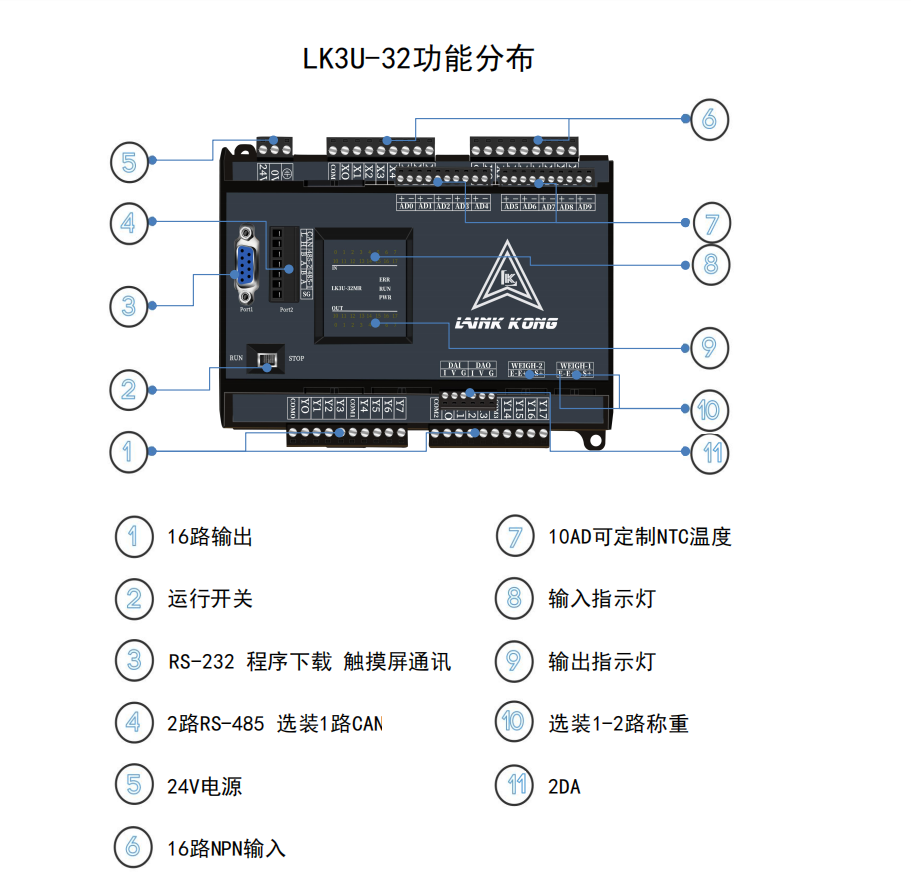

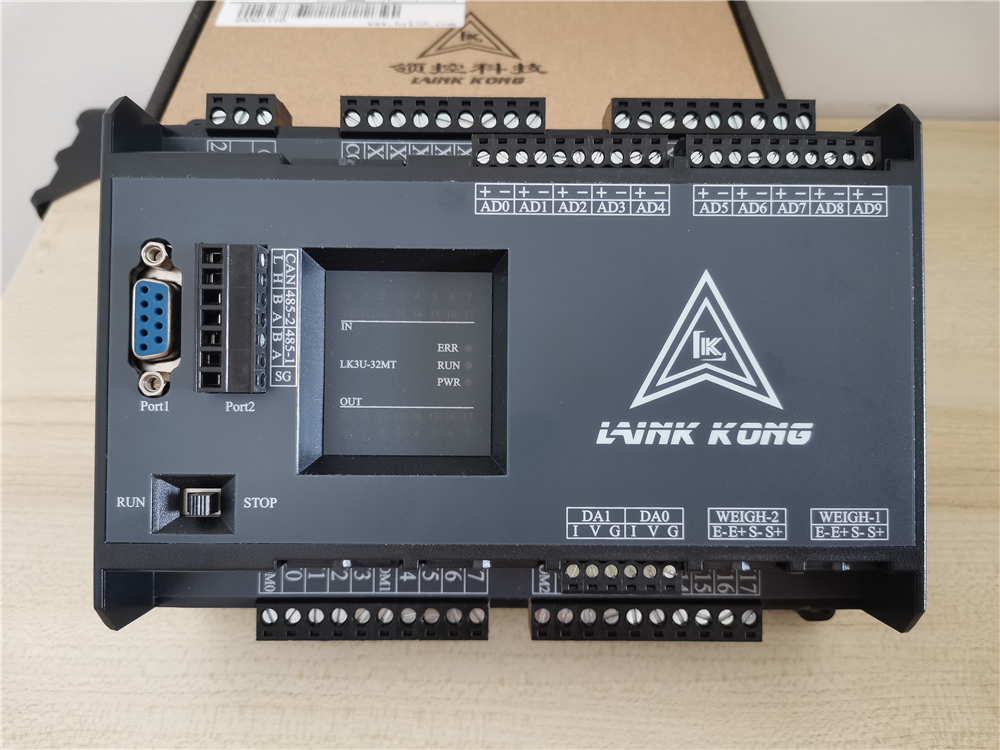

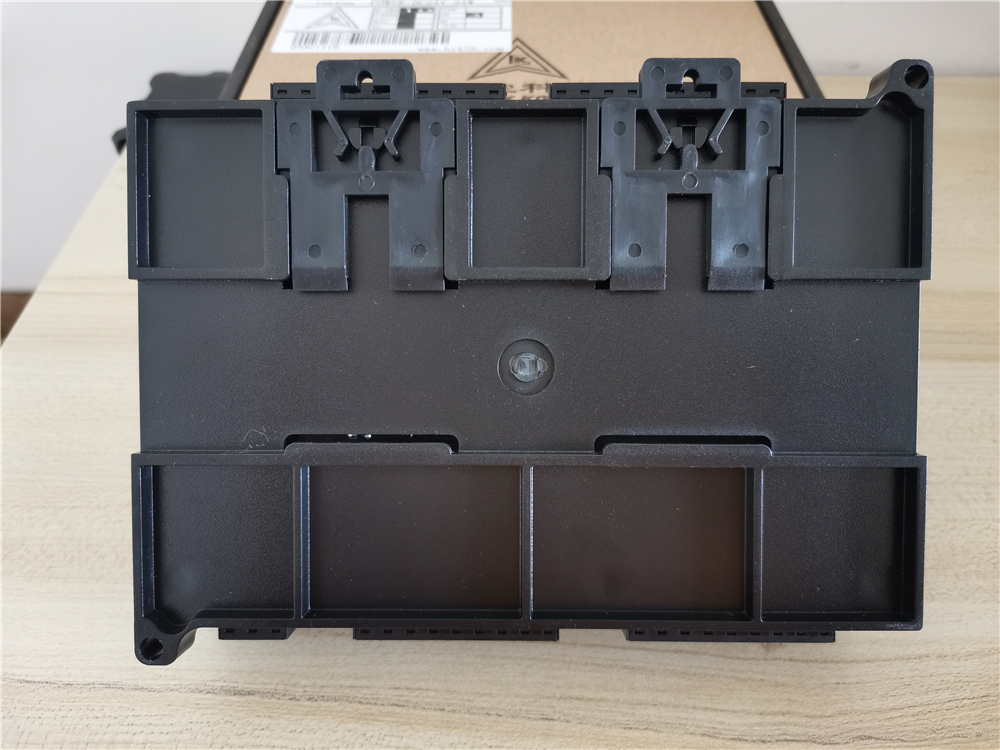

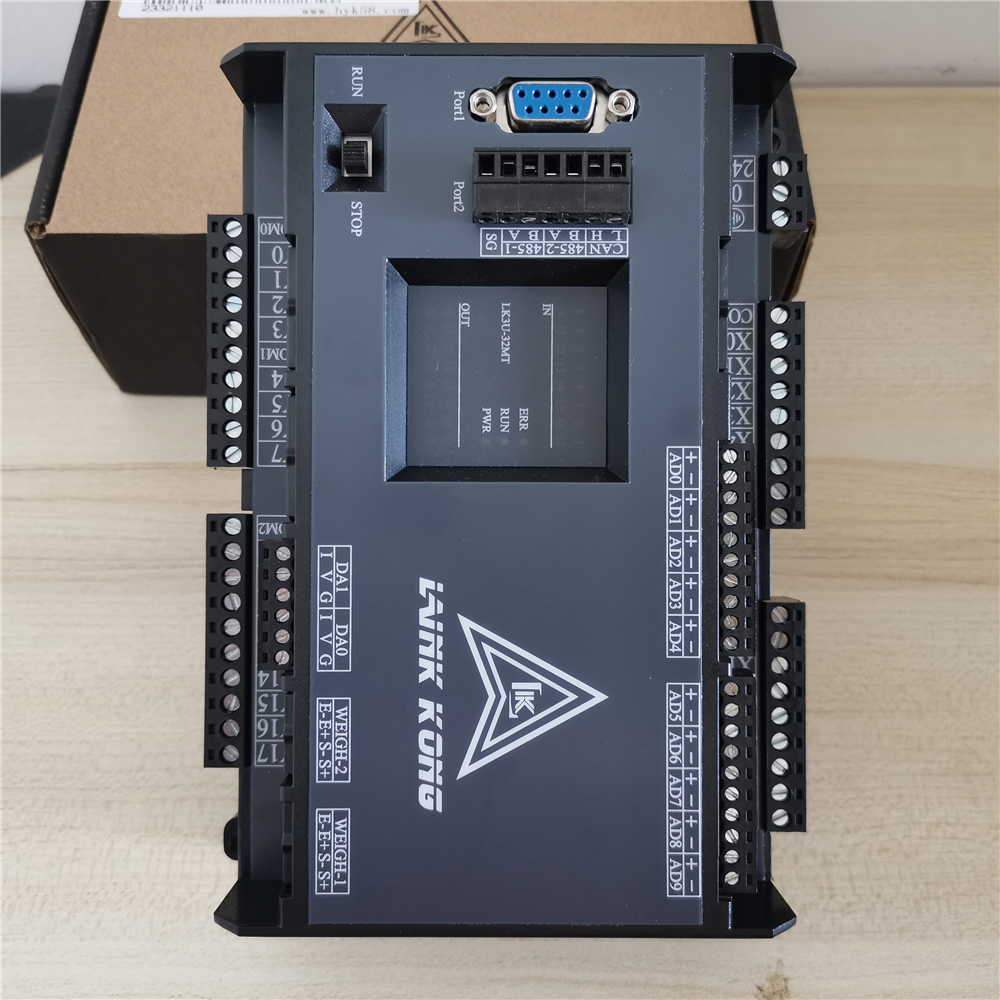

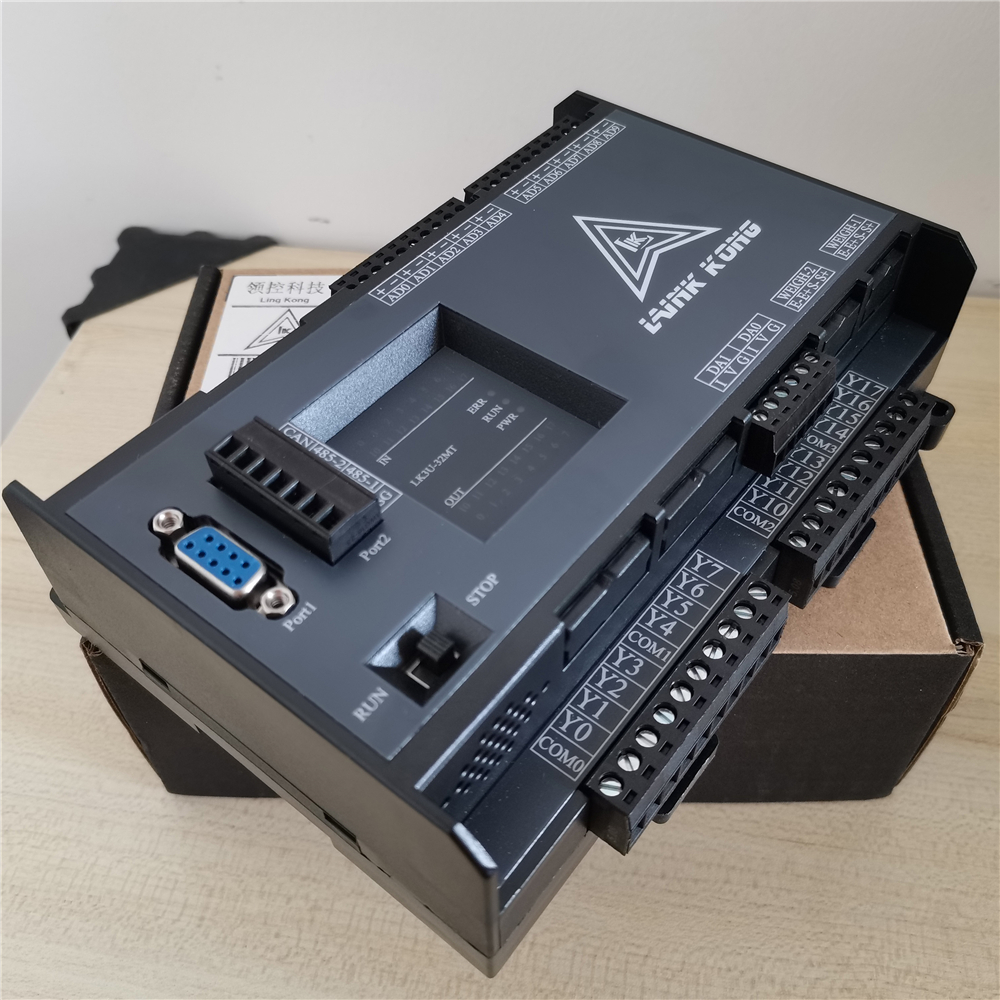

Product gallery

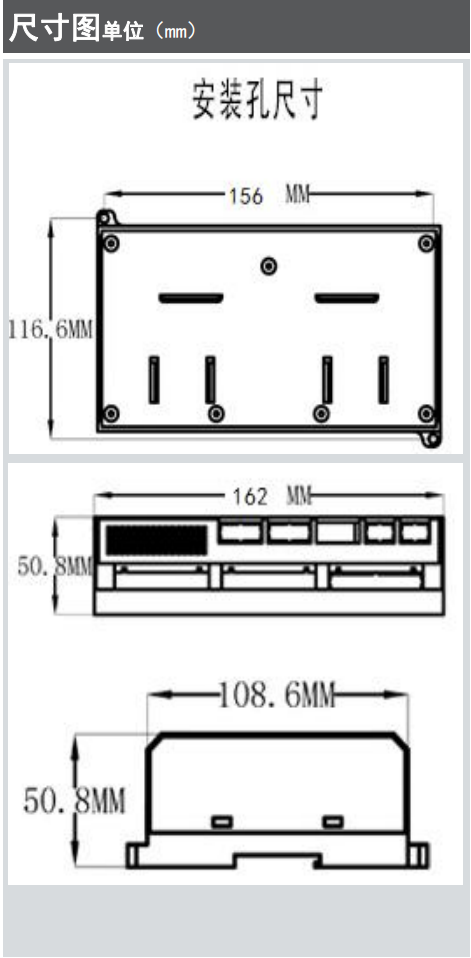

Technical drawings and reference images

Features

6 channels 200K, 2 channels 100K (MR type without high-speed output) high-speed pulse outputs for multi-axis motion
3 independent communication ports for HMI, VFD, and instrument networking
10 (Default 0-10V, configurable to 0-20MA or NTC10/50K temperature) analog input channels (0-10V / 0-20mA / NTC10/50K) for process sensing

Applications

Packaging equipment (sealing, cutting, labeling)
Multi-axis motion and servo/stepper positioning
Water and fluid treatment systems
Retrofit and replacement projects

Selection notes

Confirm total I/O points (DI + DO) and required output type (MR / MT / MRT).
MT or MRT output type required for pulse output — MR type has no high-speed output.
NCAN and ECAN are mutually exclusive — choose one per CPU.
Check cabinet depth: LK3U is 56 mm deep.

Frequently asked questions

How many servo axes can the LK3U-32-10AD-2DA control via pulse output?

The LK3U series provides 6×200KHz + 2×100KHz high-speed pulse output channels, supporting up to 8 independent motion axes. MT or MRT output type is required — MR type cannot generate high-speed pulses.

What is the difference between the LK3U-32-10AD-2DA and adjacent models in the LK3U series?

Adjacent models in the LK3U series differ primarily in I/O point count and analog input channels. The suffix convention (e.g. 14-4AD-2DA) indicates total I/O points, analog input channels, and analog output channels. Choose the model with sufficient I/O and analog capacity for your application.

What programming software is used with the LK3U-32-10AD-2DA?

All LK PLC series use GX Developer or GX WORKS2 programming software. The connection is via RS232 serial port (or USB-to-RS232 adapter).
